Emergency signals

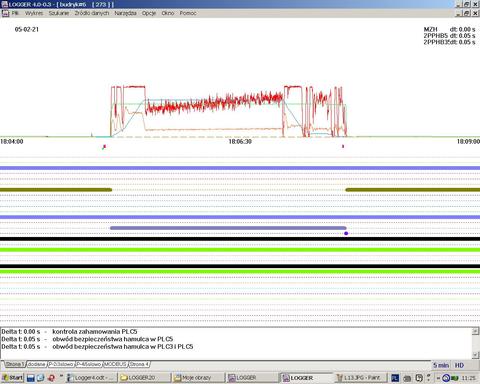

LOGGER program, apart from drawing analog, binary and single stroke signals charts, can also display and print so called emergency signals. Those signals usually come from emergency circuit in series short before this circuit breaks and are registered in groups in a form of signal's number and precise time (in ms) of occurence respectively to first of them. Both sequence and time of those signals are very important because it usually determines the cause of emergency break. In LOGGER program those signals, if occured, are listed in form of symbols and time in right side of analog plots layout. Page Configuration option enables to determine if those signals are to be displayed or not. After activating Particulars panel it is possible to read full signals' names - see fig.10.1.
