Other plots' configurations

if in the Other field:

1. Text
   1. the Text checkbox is checked – the time information beneath the X-axis at the beginning, in the middle and at the end of the screen is displayed
   2. the Text checkbox is unchecked – the time information is disabled
2. Single stroke signals
   1. the Single stroke signals checkbox is checked – the single stroke signals marks in the form of small red and green dots are displayed
   2. the Single stroke signals checkbox is unchecked – the single stroke signals marks drawing is disabled
3. H.B. - Emergency signals
   1. the H.B. checkbox is checked – the emergency signals displaying is enabled
   2. the H.B. checkbox is unchecked – the emergency signals displaying is disabled
4. Location marks
   1. the Location marks checkbox is checked – the position marks' drawing is enabled and the position marks are drawn in form of vertical red dashes along with coresponding position value

      the Location marks checkbox is uchecked – the position marks' drawing is disabled
      WARNING!!! - the position marks are displayed only for time ranges less than 20 minutes

   2. the Single stroke signals checkbox is unchecked – the single stroke signals marks drawing is disabled
5. Sound recording
   1. if the Voice recording checkbox is checked - there is a possibility of transmitting audio files from the ``AR3c-Audio'' recorder
   2. if this checkbox is unchecked - audio files can't be transmitted

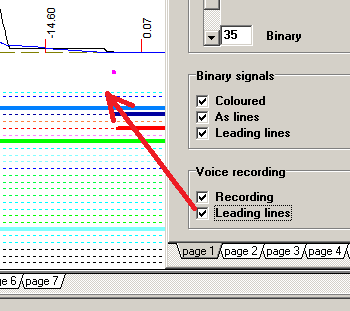

Figure 4.2: Activation of transmitting and playing audio files in Logger program.
