For precise analyzis of differences between signals' values or to estimate the time span to differentiate those values one can use Delta cursor. It has a form of two vertical lines : green and blue and a window where following informations are shown:
- Time span between cursor and Cursor Delta set in format:
- hour : minute : second : thousands of sec - for data ranges equal or less than one minute,
- hour : minute : second : hundreds of sec - for data ranges grater than one minute.
- Analog signals values at the beginning and the ending of the selected time period
- Differentials of analog signals (if configured for displaying)

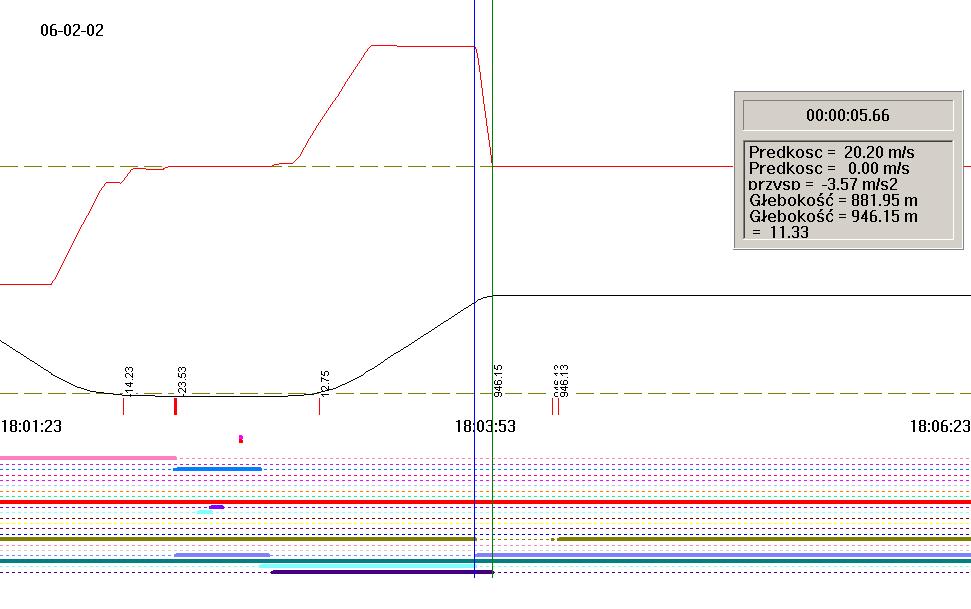

A sample window with Cursor Delta is shown on fig. 8.1.
Figure 8.1:
A sample LOGGER program window with Cursor Delta
|
|
