Charts' layers

Charts' layers

In order to display both (multiple) data layers one should:

  • From menu View choose Layers
  • A layers' submenu opens:

    • 1 Layer,
    • 2 Layer
In case of multiple datalogger's time regulations more than two data layers are created. LOGGER program enables viewing up to 4 layers. In this case, in order to avoid ambiguity, data displaying is cut down on the closiest change of layers' number. The method of displaying data layers is shown on fig. 12.1 and 12.2

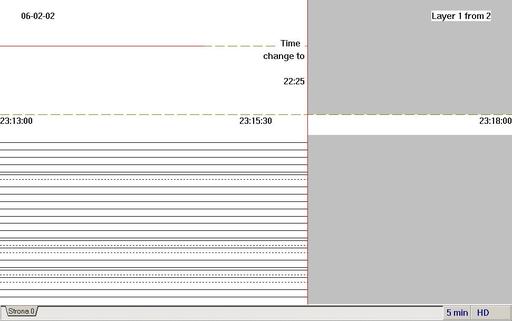

Figure 12.1: Displaying of the first data layer
Image l16

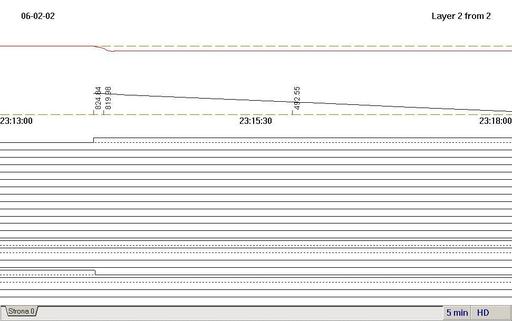

Figure 12.2: Displaying of the second data layer
Image l17
