THE MOST IMPORTANT WORKS IN 2005
| Name | Network Logger program version installation at KWK Polska Wirek |
| Executed works scope |
- CRD computer modernization - equipping with 4 x COM card
- Server program installation on computer that has direct access to AR-2c Dataloggers
- Logger program build in network version for all AR-2c Dataloggers
- Logger program client network version install on three workstations
|
| Time range | --- |
| Investor/General Contractor | Kompania Węglowa S.A. KWK Polska Wirek |
| Installation special features | --- |
| Name | AR-2c upgrade to AR-3c and its accommodation to acts as specified in documentation on ZGE Sobieski - Jaworzno # Sobieski III |
| Executed works scope |
- Processor block replacement from AR-2c to AR-3c
- Two MODBUS RTU communication cards installation
- 8 analog inputs POMMAX card installation and analog signals connection as it is specified in documentation
- Supply and installation of Logger program
- Logger application program for AR-3c Datalogger
|
| Time range | August 2005 |
| Investor/General Contractor | ELCAM spółka z o.o. |
| Installation special features | --- |
| Name | Modernization of AR-2c Dataloggers installed in #Wanda I and # Wanda II KWK Pokój along with data transmission system repair |
| Executed works scope |
- Supply and installation of operational brakes pressure converter
- AR-2c Dataloggers accommodation to register pressure in brake circuits
- TCP/IP - RS 485 and RS 485 / RS 232 transmission converters supply and its installation in transmission system
- Logger program network version installation and build of Logger application program in network version
- Registered signals quantity extension. It is done by swap 8 binary input cards to 16 binary input cards
- Whole data registration system startup
|
| Time range | August 2005 |
| Investor/General Contractor | Kompania Węglowa S.A. KWK Pokój |
| Installation special features | AR-2c connection to LAN by transmission converters acts as network servers. |

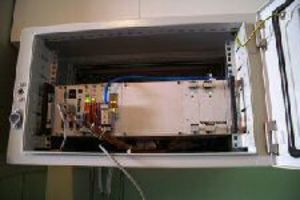

| Name | Supply and installation of AR-3c Datalogger in hoist #SG I in KGHM Polska Miedź S.A. o/ZG Polkowice-Sieroszowice |
| Executed works scope |
- AR-3c Datalogger in specified configuration supply
- PROFIBUS DP card supply for binary signals registering
- Datalogger parametrization as specified in documentation ''change log''
- Velocity signal from encoder connection
- Installation on place, signals connection, testing and startup
- Network devices supply and transmission between datalogger and mine's LAN startup (using VDSL modems)
|
| Time range | August 2005 - datalogger installation, May 2006 - network connection startup |
| Investor/General Contractor | ABB Sp. z o.o. |
| Installation special features | --- |
Gallery

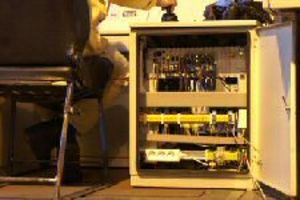

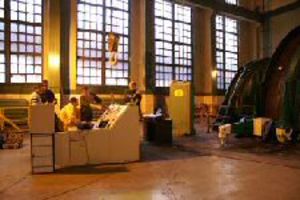

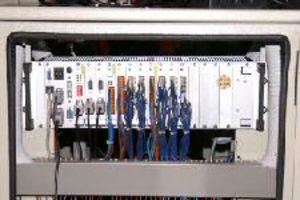

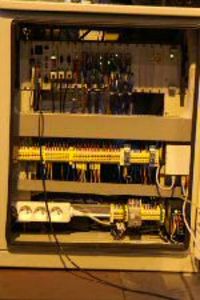

| Name | Two AR-3c Dataloggers supply with visualization system and CRD computers; installation in hoist #Julian I eastern and western ZG Piekary |
| Executed works scope |
- Two AR-3c Dataloggers supply with pressure and currents sensors and encoders
- Producing documentation regarding setting up datalogger and joining it to main control circuit.
- MODBUS RTU communication cards supply to connect signals from controllers

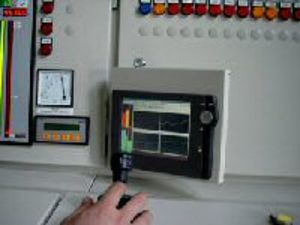

- Supply and visualization panels, with touchscreen, installation
- Network transmission system build and its inclusion to mine's computer network
- Dataloggers parametrization
- Logger application program build for both Dataloggers
- Testing and startup
|
| Time range | May 2005 - #Julian I west, December - I stage on # Julian I east, December 2006 - II stage of modernization on # Julian I east |
| Investor/General Contractor | Kompania Węglowa S.A. ZG Piekary - I stage, Elkon Sp. z o.o. - II stage |
| Installation special features | First complex realization of full version AR-3c with visualization system |
Gallery
| Name | AR-2c upgrade to AR-3c in #III eastern KWK Szczygłowice |
| Executed works scope |
- Processor block replacement from AR-2c to AR-3c
- PROFIBUS DP communication module supply for binary signals registration
- Datalogger parametrization as specified in ''changelog''
- Connection and registration check for analog and binary signals
- Network connection startup between mine's LAN and hoist's room
- Supply and startup of visualization console type SL-4 with ''ar3c-monitor'' visualization program
- Wireless spot supply and wireless 2.4 GHz connection startup between Datalogger and visualization console
|
| Time range | August 2005, February 2006 - wireless connection |
| Investor/General Contractor | Kompania Węglowa S.A. KWK Szczygłowice, MWM Elektro sp. z o.o |
| Installation special features | Wireless technology used for hoist operation visualization system connection, it is possible to transmit data to portable computer by Wi-Fi |
| Name | AR-2c upgrade to AR-3c in #II eastern KWK Staszic |
| Executed works scope |
- Processor block replacement from AR-2c to AR-3c
- Supply and installation of rotation - pulse converter
- Supply and installation of two MODBUS RTU communication cards
- 8 analog inputs POMMAX card and 32 additional binary 110V inputs installation
- Logger application program build
- Supply and startup of wireless spots, complement network elements and radio transmission channel between hoist machine building and offices
|
| Time range | September 2005 |
| Investor/General Contractor | Carboautomatyka Holding Sp. z o.o. , ELCAM Sp. z o.o. |
| Installation special features | Datalogger has been connected to mine's LAN by 2.4 GHz radio channel |
Gallery
| Name | Supply and installation of AR-3c in hoist #VIII western KWK Jankowice |
| Executed works scope |
- AR-3c Datalogger in specified configuration supply
- PROFIBUS DP card supply for binary signals registering
- Datalogger parametrization as specified in documentation ''changelog''
- Velocity signal connection from encoder
- Installation on place, signals connection, testing and startup
- Network devices supply and transmission between datalogger and mine's LAN startup (using VDSL modems)
|
| Time range | December 2005 - datalogger installation, March 2006 - network connection startup |
| Investor/General Contractor | ABB Sp. z o.o. |
| Installation special features | --- |
